Uninterruptible Power Supply (UPS) Module for Raspberry Pi/Jetson Nano Supports Charging and Power Output at The Same Time 3S & 5V 5A Output

Power Mode:Battery Powered

Operating Voltage:≤36V

Battery Properties:Without Battery

Origin:Guangdong,China

Product Introduction:The UPS Module 3S is a 3S output uninterruptible power supply (UPS) module that supports simultaneous charging and discharging. It can provide stable 5V and 3.3V voltage outputs and supports I2C output to display parameters such as I-P address, battery voltage, current, and power.

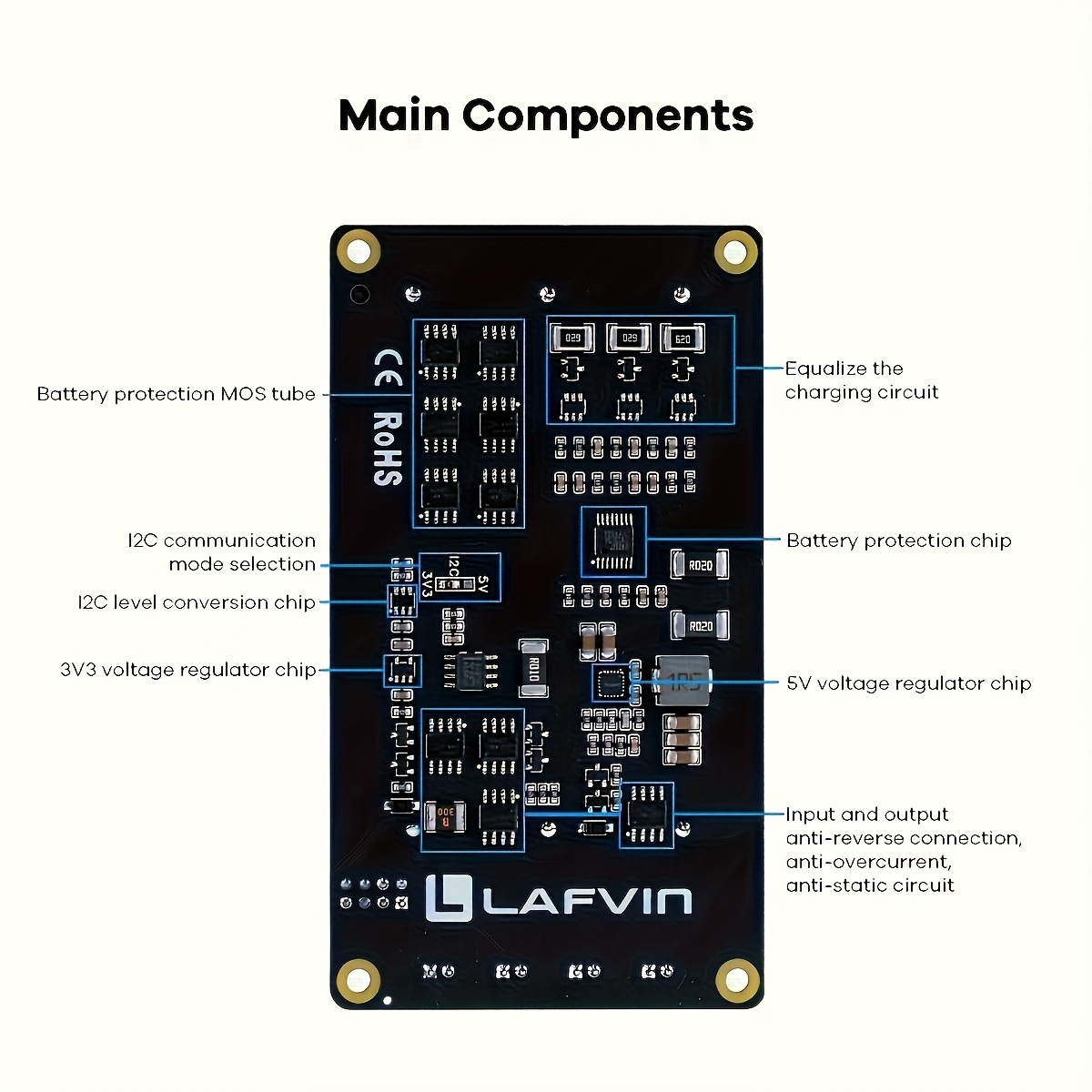

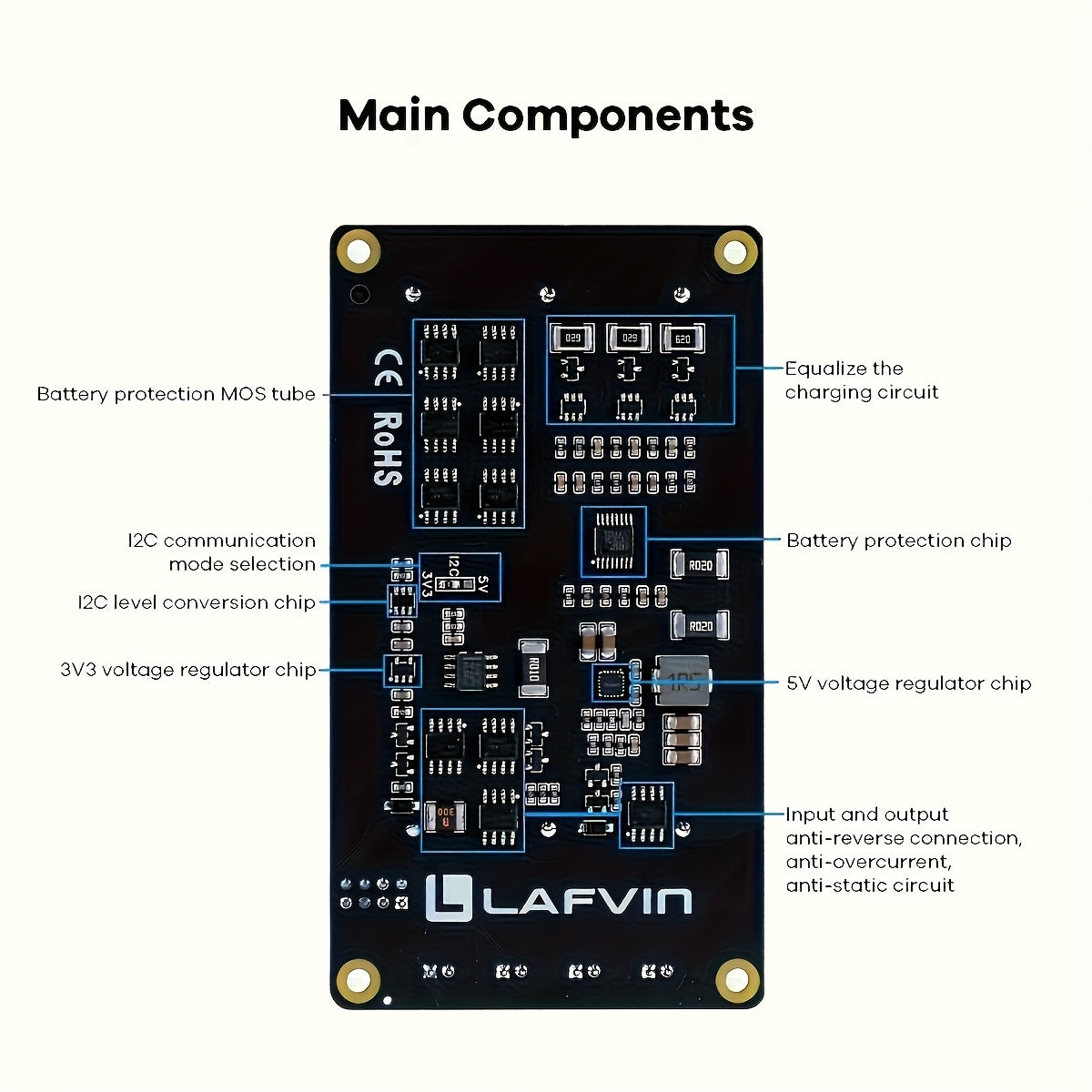

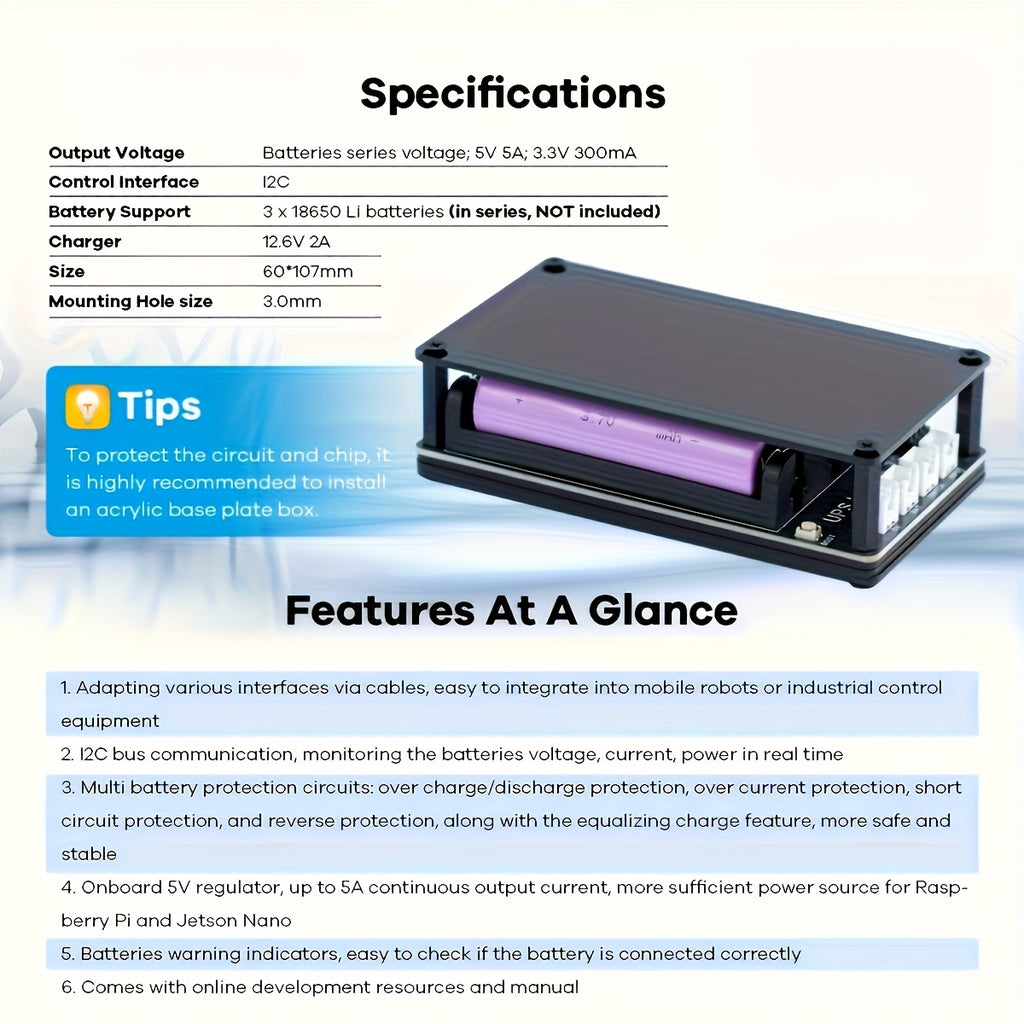

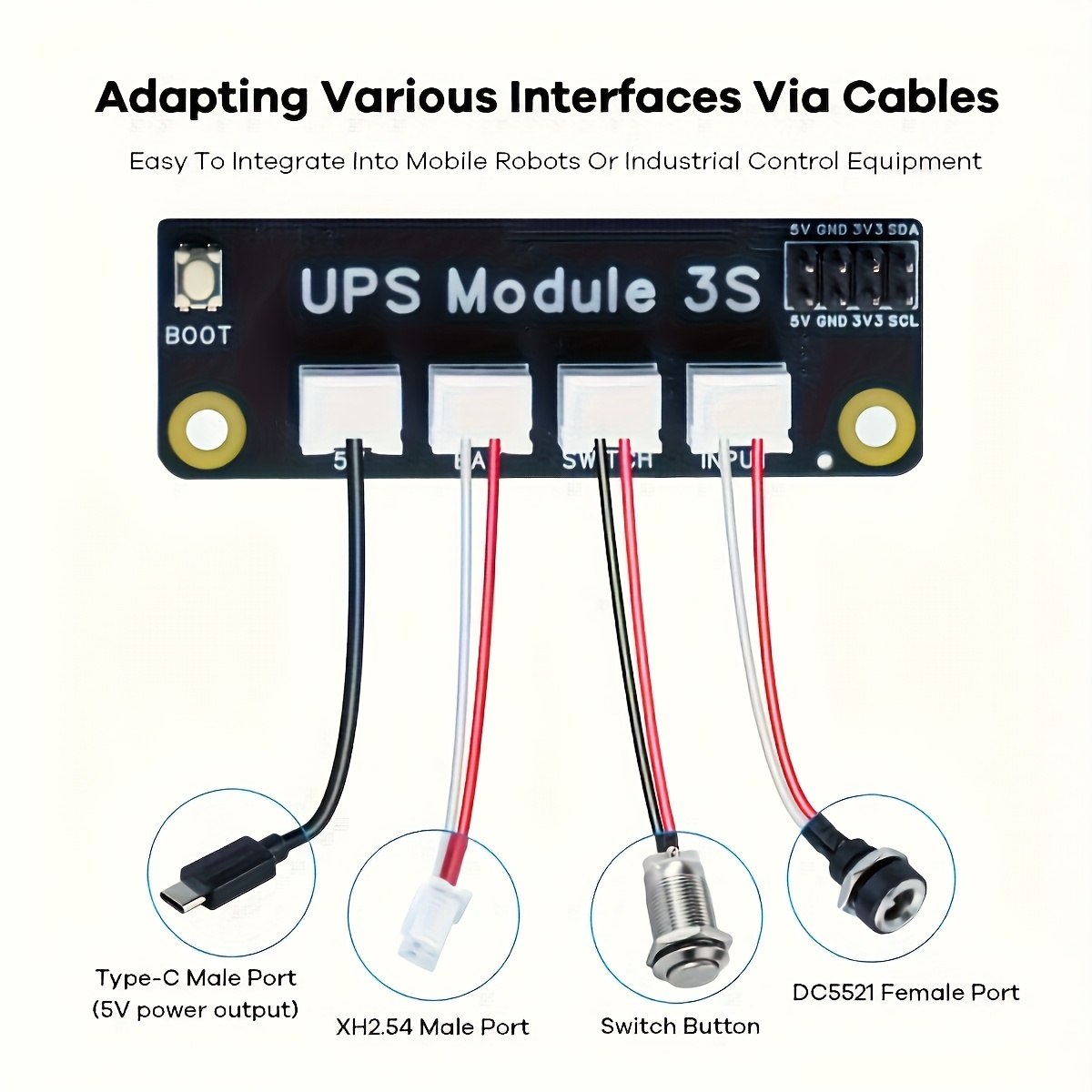

Features:1.Rich Expansion Interfaces: Meet the usage requirements of various scenarios.2.Onboard Battery Protection Circuit: Protection against overcharging, over-discharging, over-current, short-circuiting, and reverse connection. It also features balanced charging for safer and more stable operation.3.Onboard 5V Voltage Regulator: Capable of providing up to 5A continuous output current, sufficient to power devices like the Raspberry Pi or Jetson Nano.

Functions:1.Smart Charging Management: Supports intelligent charging for 3S lithium battery packs with constant current and constant voltage charging modes. It automatically detects the battery status to ensure safe and efficient charging, extending the battery life.2.Output Short-Circuit Protection: In the event of a short circuit at the output end, the module can quickly cut off the power output to prevent excessive current from damaging the module or causing safety accidents.

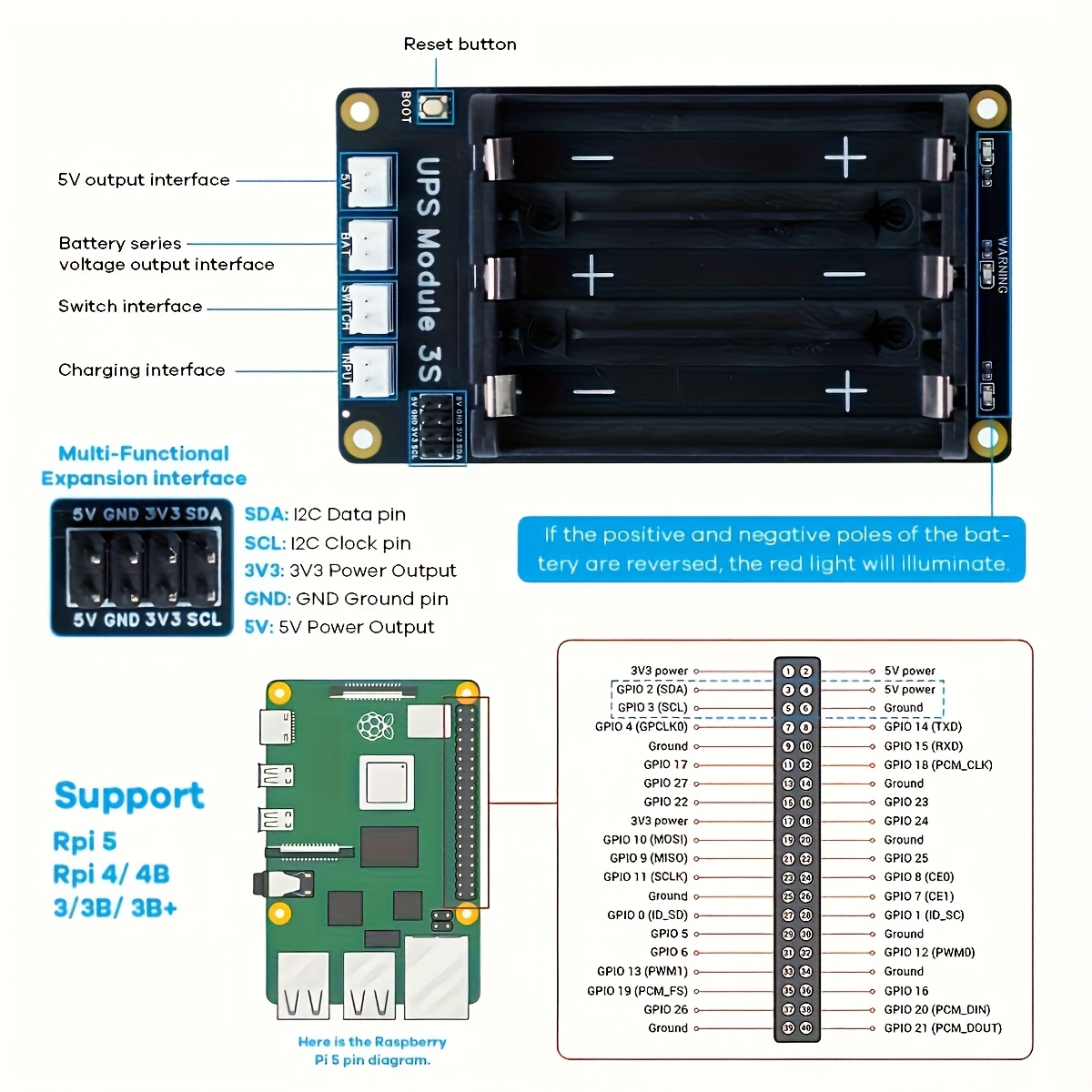

3.Real-Time Data Monitoring: Through I2C interface communication, it can measure battery voltage, current, and power parameters to monitor the module's operating status in real time.4.Reverse Connection Protection: Equipped with an onboard warning light that illuminates when the battery is connected in reverse. The circuit also has built-in reverse connection protection to further safeguard the module.
